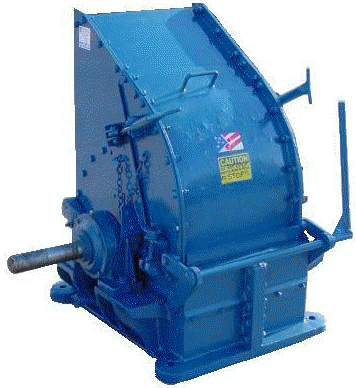

Jay Bee 4SW

Jay Bee 4SW

Specifications

4SW

Throat opening
12" X 20"

Screen Size
19 3/4" X 37 1/2"

Capacity
12 -15 tons per hour through 1/4" screen with 3/8" thick hammers - shell corn

Hammer Requirements
32 pieces per set on 8 rods

Motor Requirements
75 - 150 HP, 3600 rpm, 3 phase

Motor may be set on either side, and may be equipped with optional 4", 6", or 8" fan or used as a direct drop
